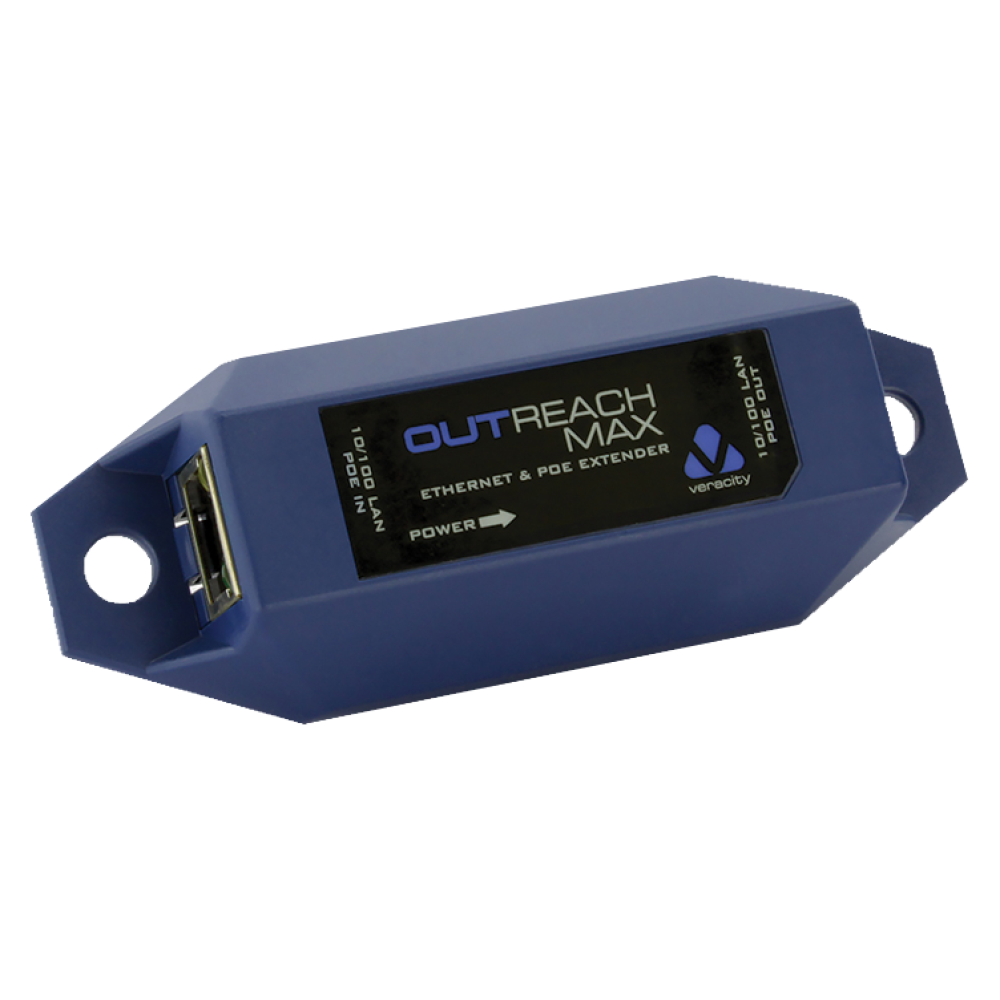

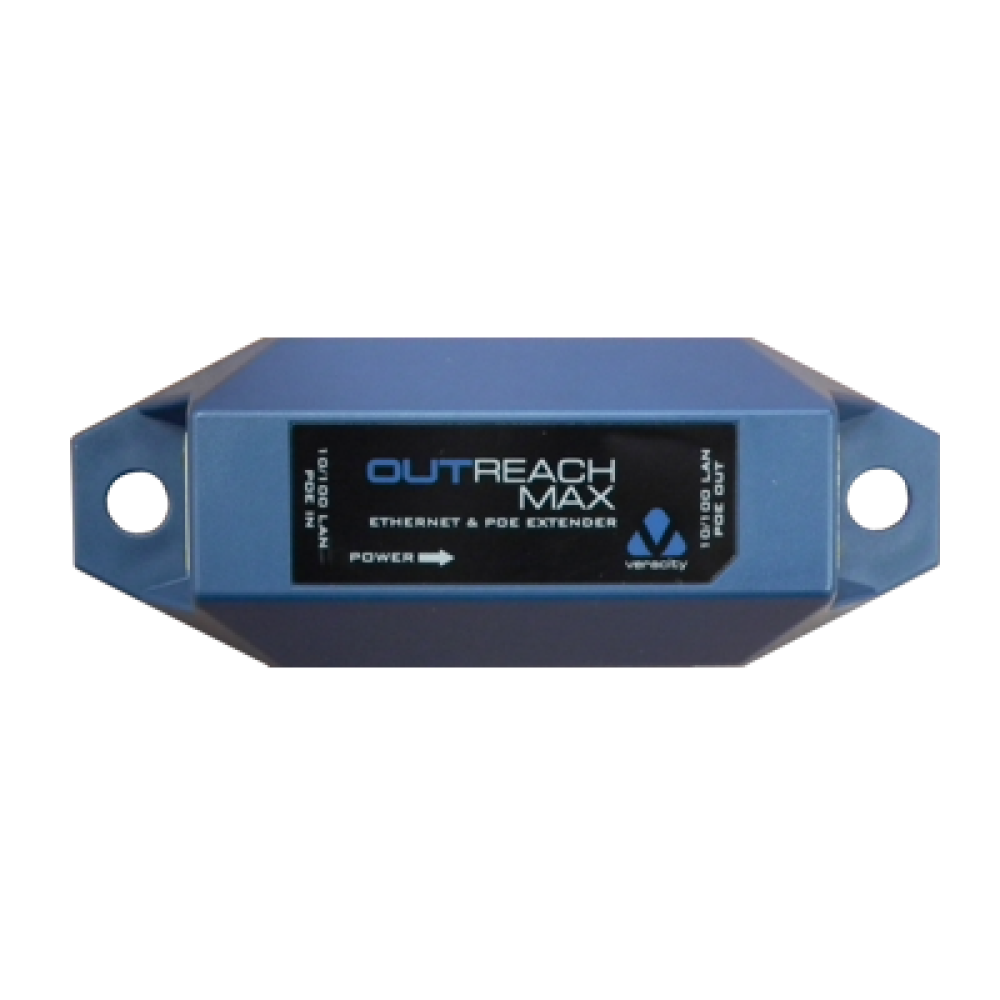

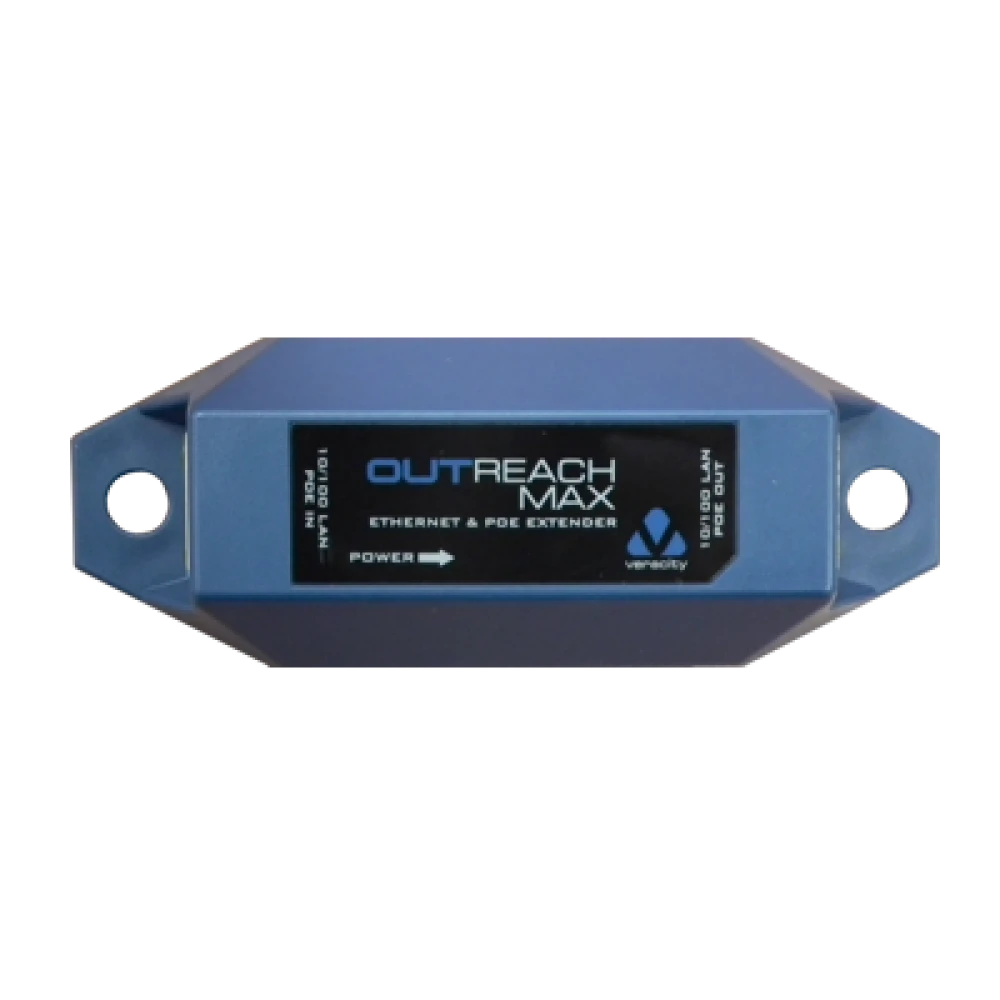

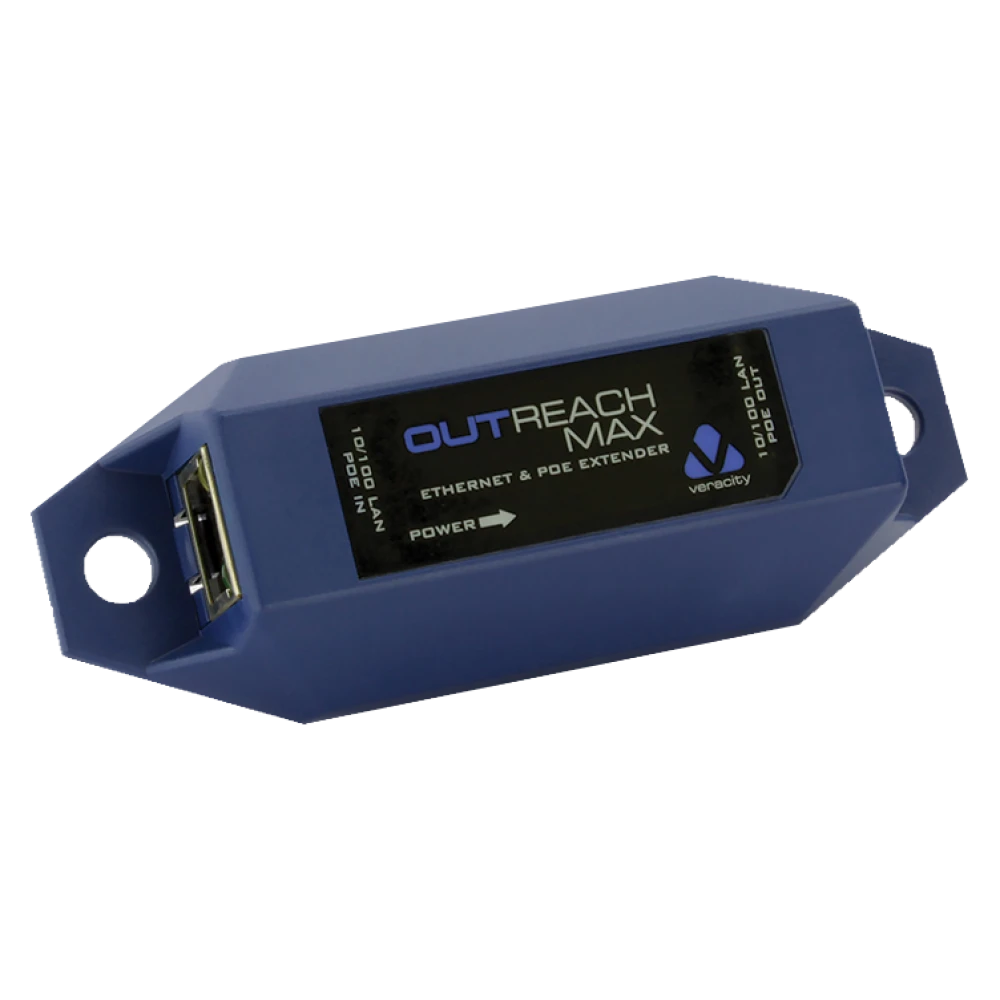

Veracity - Outreach Max - VOR-ORM - PoE Extender 100m - 75w

  • Powered by PoE & extends Cat5/6 Ethernet by 100 metres
  • Daisy-chain units to reach up to 1000 metres (9 units)
  • Easy to install, no set-up required
  • PoE & PoE Plus compliant (IEEE 802.3af & 802.3at)
  • Handles up to 60W high-power PoE delivery at 200m (1 unit)
  • The Veracity Outreach Max VOR-ORM is a simple device which can extend Ethernet cable passively beyond the 100m limitation. It is used to join two Ethernet cables, each of up to 100m in length, and acts as a repeater to forward both LAN activity and power to a PoE-enabled device at a 200m distance
  • Cable: Ethernet 100Base-TX full duplex only with auto-negotiation, straight through or crossover type (auto detected)
  • Maximum power: 2.2W (1W typical)
  • PoE output: IEEE802.3af Class 1 or 2 (max. 6.49W), Class 3 (max. 12.95W using Outsource PoE Injector)
  • Maximum range: 700m PoE Class 1 / 1000m no PoE (using Veracity Outsource). Actual range dependent on power requirements of PoE device
  • Operating temperatures: -10°C to 50°C (14°F to 122°F)
  • Dimensions: (HxWxD) 20 x 37 x 70mm (100mm deep with tabs)
  • Weight: 85g (3 oz.)
  • PoE input: IEEE802.3af Class 0 (max. 12.95W)

5 Year Warranty

For full specs click here
