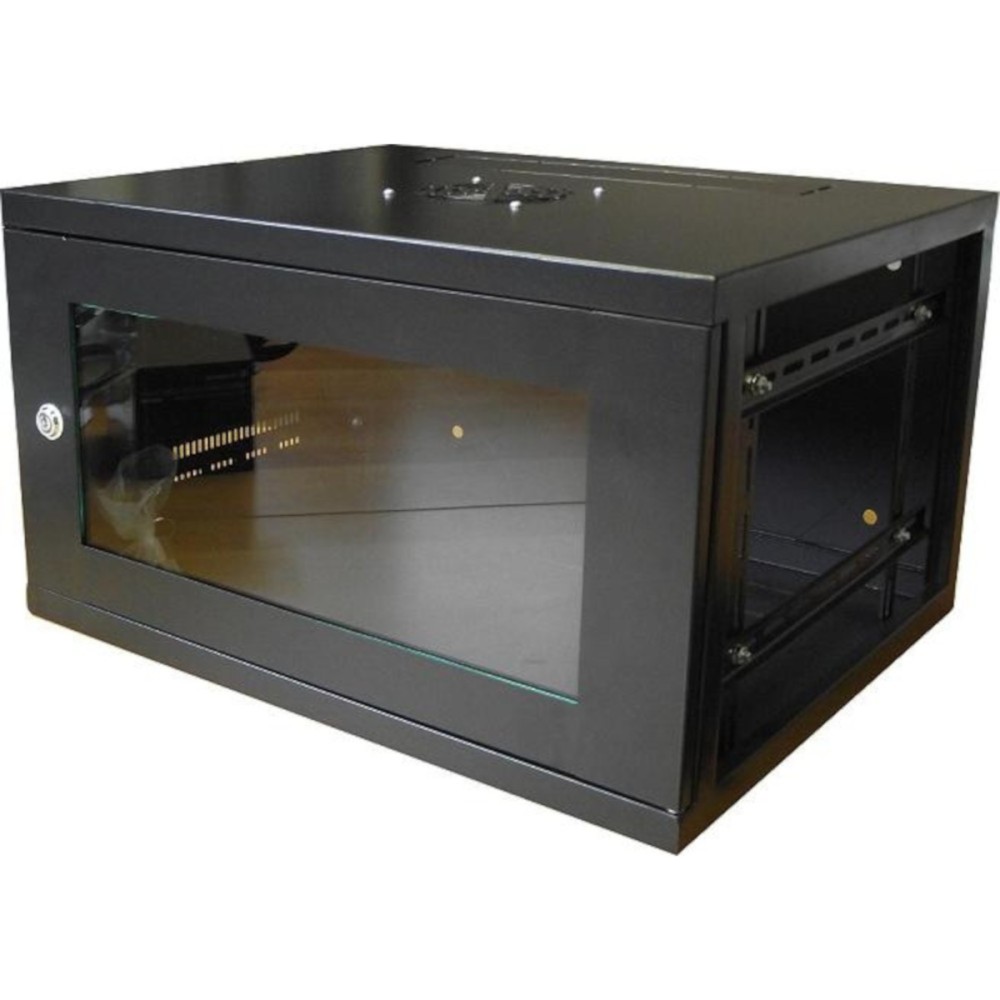

Cabinets Wall mountable in black 6U or 9U & 450mm-550mm or 12U Floorstanding
These cabinets have been designed for the installation and efficient use of audio, cabling, networking and security products. This particular cabinet is made of high grade, heavy duty steel which gives a sturdy and safe cabinet, fit for many applications.
This cabinet has been designed for a nice and easy simple install. Additional features such as a lockable cable entry from the bottom of the cabinet and quick release side panels, make the cabinet flexible and easy to work with, as well as being aesthetically pleasing.
Cable entry on the top cover and bottom panel with adjustable sizes
Removable side panels to make maintenance easy

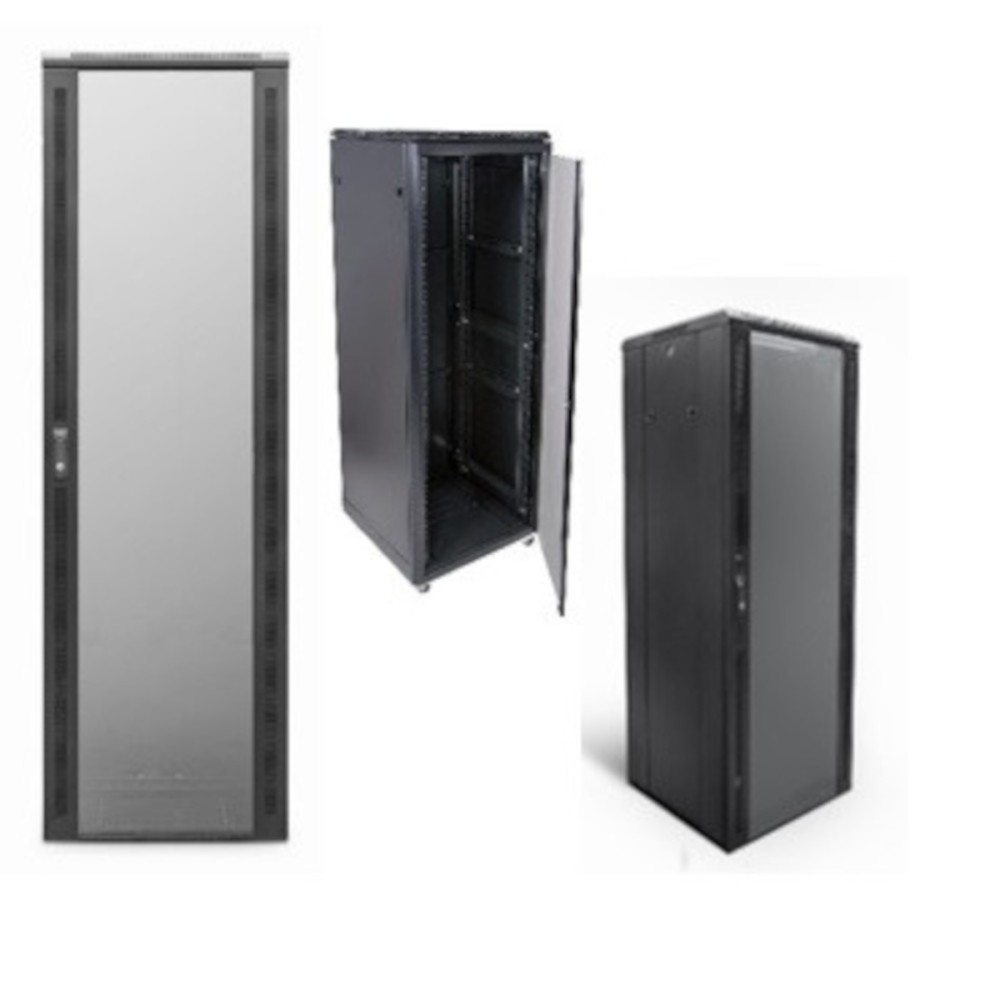

12U Floorstanding unitIntegral Front Cable Magement fitted . Ideal for SME, IT rooms,PBX & boradcast. 2 way Low noise fan tray fitted . Fitted vented shelf, jacking feet/castors and jacking UK Assembled and quality assured.
FREE FITTED ACCESSORIES IN FLOORSTANDING UNIT INCLUDE CASTORS & JACKET FEET SET ROOF-MOUNTED FAN TRAY M6 CAGE NUTS & BOLTS FITTED VENTED SHELF

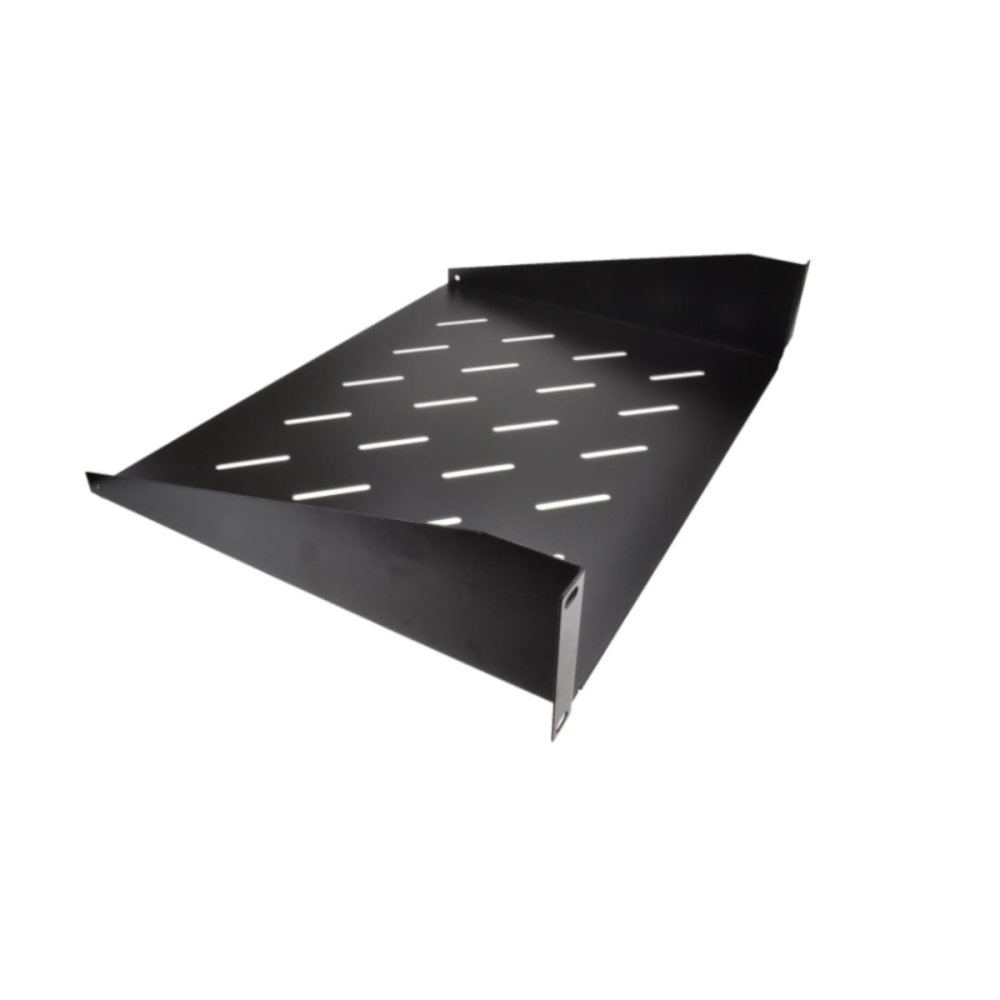

The optional lightweight shelves are ideal for storing equipment that isn't rackmountable into your cabinets. There shallow depth makes them the perfect accessory for this cabinet.

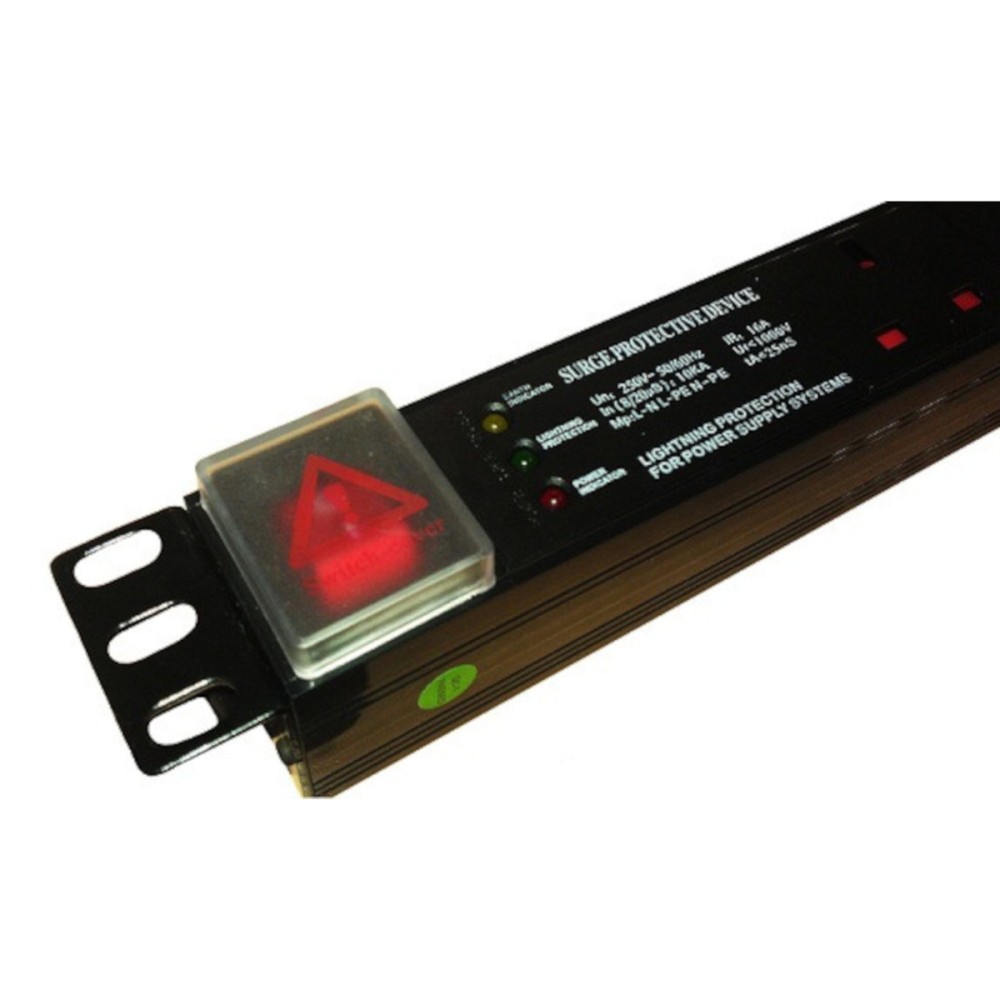

Quality, reliability and a low cost solution for Enclosure power requirements
Horizontal Rackmount (Brackets supplied)
Fitted with UK Power Sockets for your powered devices
Generous 1.8 metre power cable plus integral Neon Rocker Switch
Fitted BSI Standard UK Power Plug with 13a BSI Fuse
UPS 2U - Fits in both 450mm/550mm deep cabinets
The LMS DATA LMSP800RI LMSP1200RI SLA Intelligent 2U Rackmount Uninterruptible Power Supply features a long runtime 800VA 1200VA battery with features not found on intelligent UPS at this low price point. Featuring an advanced microprocessor system for efficient input and output power monitoring, this LMSP800RI also features a wide input voltage and frequency window, so can be used in a choice of geographical locations, as well as auto-diagnostics, overload protection and auto charging and shutdown when the battery is not under load.
- 800VA / 1200VA SLA battery chemistry -maintenance free providing around 480WH / 720WH of power* up to 75% efficienct
- Standard (x4) IEC 13 female high density output ports
- Supports 110/120 or 220/230/240 volts @ 50/60Hz
- Line interactive technology with modified sine wave support
- Microprocessor monitoring with auto-start diagnostics
- On-load LCD display for 'at a glance' status and variables
- Automatic shutdown and battery conservation support
- Built-in support for telephone and fax systems
- Built-in USB port for Windows(tm) utility monitoring**
- User replaceable fuse design to reduce downtimes
- Standard 2U rack-mount, 19-inch design with grab handles
- Comes with 4x IEC Cables
** supplied Windows(tm) UPSmart 2000
800VA / 1200VA
For a standard 4 channel CCTV System pulling around 100w this unit should keep it running for around 20 / 40 mins
For a standard 8 channel CCTV System pulling around 150w this unit should keep it running for around 10 / 20 mins
For a standard 16 channel CCTV System pulling around 200w this unit should keep it running for around 7 / 15 mins
For a standard 32 channel CCTV System pulling around 400w this unit should keep it running for around 3 / 7 mins
1yr RTB Warranty
