PoE Splitter - VIGITRON Netmux IP & PoE Port Multiplexer (Combiner / Splitter) (Vi00103RX+Vi00103TX)

PoE Splitter - VIGITRON Netmux IP & PoE Port Multiplexer (Combiner / Splitter) (Vi00103RX+Vi00103TX)

Brand:CCTV Empire
Product Code: vi00103
In Stock

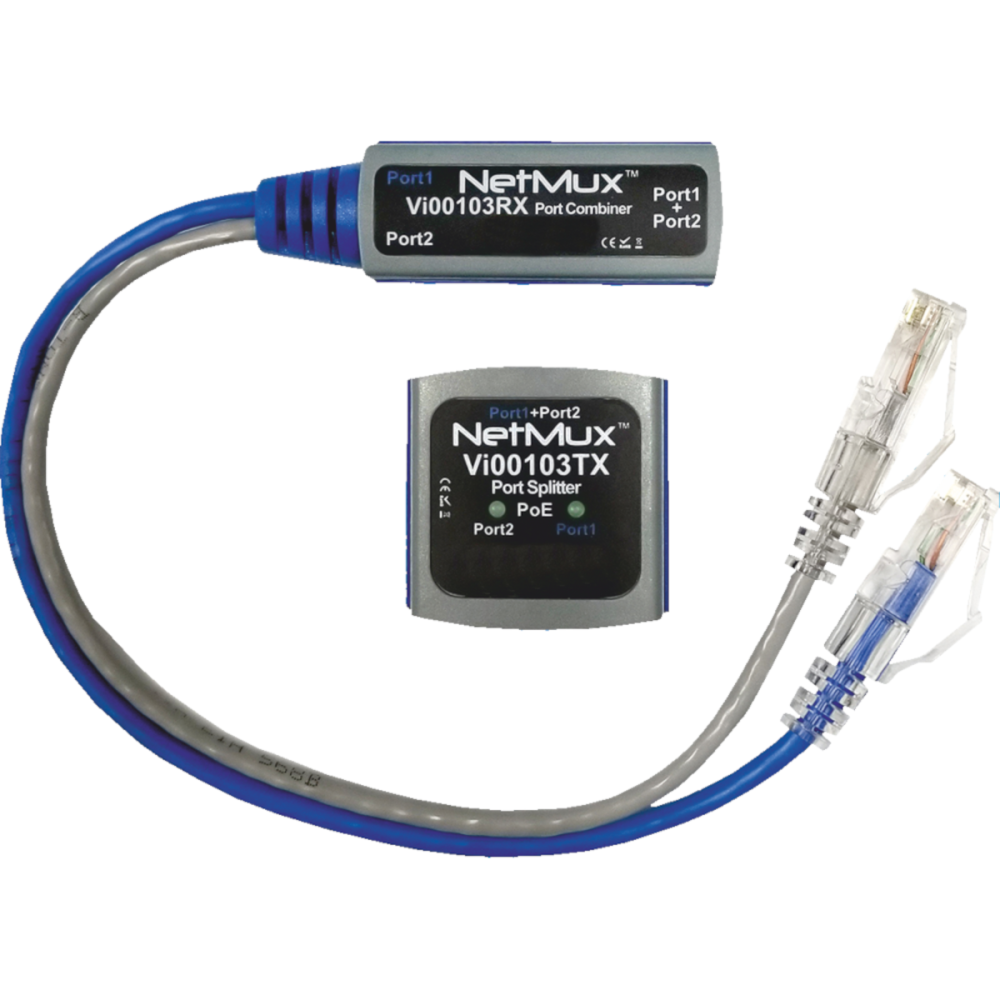

The Vi00103 port multiplexer enables connecting two IP/POE devices using a single Cat5/6 cable. It features a port Combiner and a port Splitter. The Vi00103RX combines two IP/PoE signal and transmits them through a single Cat5e/6 cable. It has two built-in 10 inch Cat 5 pigtail cables to connect to the PoE switch. The Vi00103TX separates the combined signals and connects them to two ports of the PoE switch. It has two integrated LEDs to provide indication of PoE status for each port.

The Vi00103 can handle PoE inputs of up to 37W for each connected device. The NetMux™'s innovative design is compact and easy to use.  It is compatible with IEEE 802.af, IEEE 802.at and most non-standards POE systems up to 37W for 10/100 BASE-T environments.

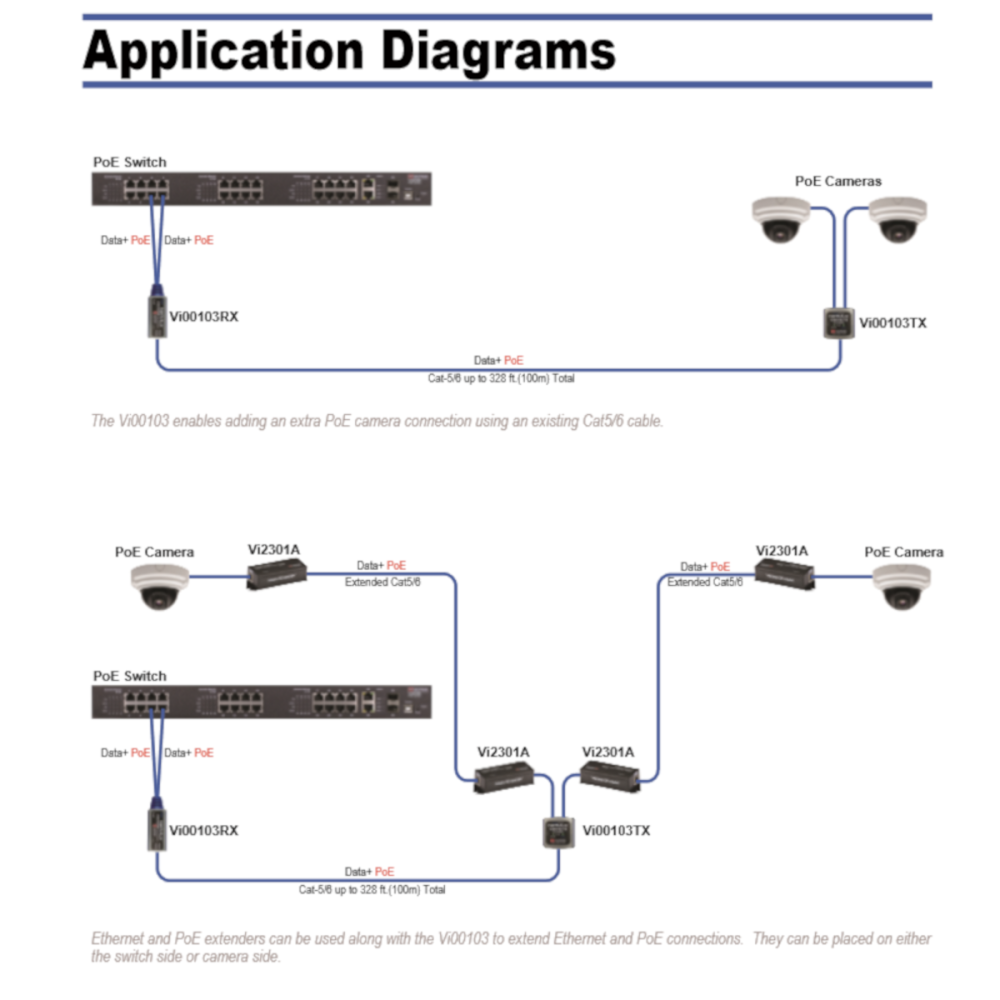

A perfect solution for reducing installation costs or adding PoE cameras or other IP/PoE devices to an existing installation.

  • Connects two IP/PoE devices to a PoE switch using a single Cat5/6 cable
  • Provides up to 37W to each device
  • Reduces installation costs and time
  • Indicates PoE presence at Camera side (TX module)
  • Compatible with IEEE 802.3af and IEEE 802.3at
  • No power source required
  • Low cost and easy to use

For spec sheet click here
