Hikvision DS-D5224F3-1V0SV/D 24inch decoding monitor HDMI 1080P - Speakers

Hikvision DS-D5224F3-1V0SV/D 24inch decoding monitor HDMI 1080P - Speakers

Brand:Hikvision
Product Code: DS-D5224F3-1V0SV/D
SKU : DS-D5224F3-1V0SV/D
Availability: Delivered in 2-3 Days

Tags: HIKVISION, DS-D5224F3-1V0SV/D, 24INCH, DECODER, MONITOR, HDMI, 1080P, -, SPEAKERS, DS-D5224F3-1V0SV/D, MONITORS, DISPLAY

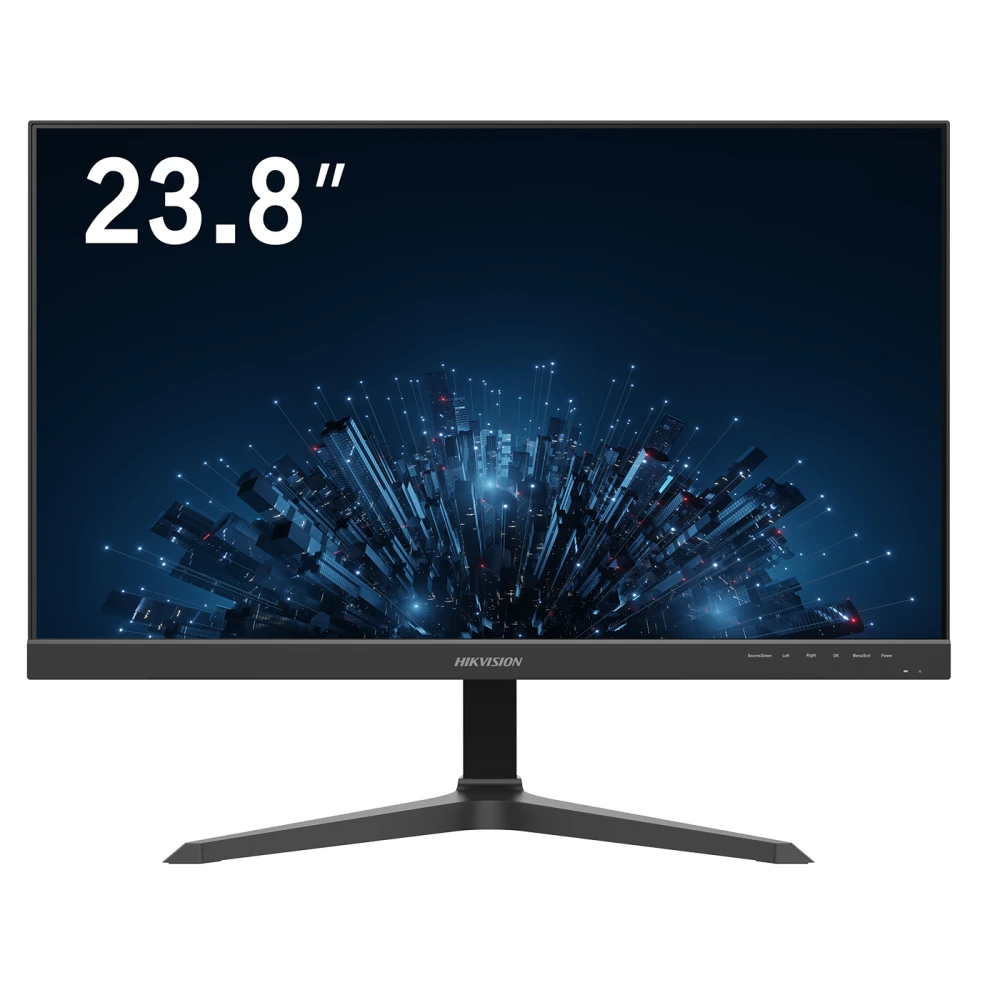

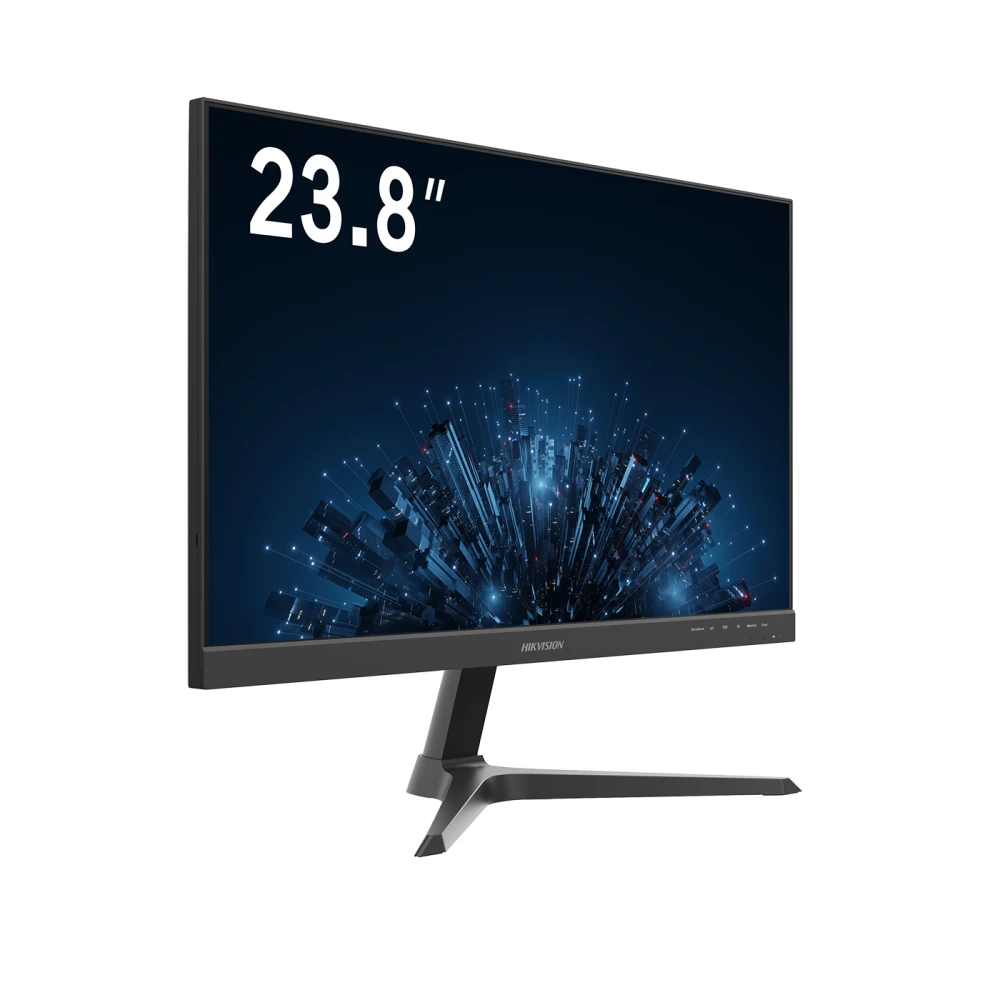

The Hikvision DS-D5224F3-1V0SV/D decoding monitor is a 23.8-inch Full HD display that pulls IP camera streams straight over the network.

It can decode up to 16 channels at 1920 x 1080 resolution, with layouts from single-screen up to 16-way split. Built for 24/7 use in small viewing setups.

It connects to cameras over ONVIF and RTSP, so it works with a wide range of IP cameras, not only Hikvision. You get an HDMI input, two USB 2.0 ports and a gigabit RJ45 network port, plus a local menu or a web browser for setup.

Decoding tops out at 16 channels of 1080p at 30fps, or a single 32MP feed on one screen. H.265, H.264, Smart264/265 and MJPEG are all handled, and there are two built-in speakers for audio.

Key Features

  • 23.8 inch FHD VA 100Hz speaker
  • 60Hz refresh rate - 1080P Full HD
  • Support H.265、H.264、MPEG4、MJPEG video codec
  • Support PS, RTP (H.265, H.264, MJPEG, MPEG2-TS)
  • Maximum 16CH Video Decoding Channel
  • Video Decoding Channel Max 16CH
    • 1) H.264/H.265 format: Supports decoding 1-channel 32 MP/24 MP, 2-channel 12 MP, 4-channel 8 MP, 5-channel 6 MP, 9-channel 4 MP, 16-channel 1080p and lower resolution @ 30 fps in real time.
    • 2) MJPEG format: Supports decoding 4-channel of 1080p and lower resolution @ 25 fps in real time.
    • 3) HIK264 format: Supports decoding 1-channel of 720p and lower resolution @ 25 fps in real time.
  • Encrypted Stream Decoding Channel Max 16CH
    • 1) H.264/H.265 format: Supports decoding 1-channel 32 MP/24 MP, 2-channel 12 MP, 4-channel 8 MP, 5-channel 6 MP, 9-channel 4 MP, 16-channel 1080p and lower resolution @ 30 fps in real time.
    • 2) MJPEG format: Supports decoding 4-channel of 1080p and lower resolution @ 25 fps in real time.
    • 3) HIK264 format: Supports decoding 1-channel of 720p and lower resolution @ 25 fps in real time
  • 1-screen layout support max. 32MP - Screen Split Quantity 1,4,6,8,9,16
  • Support ONVIF, RTSP camera protocol

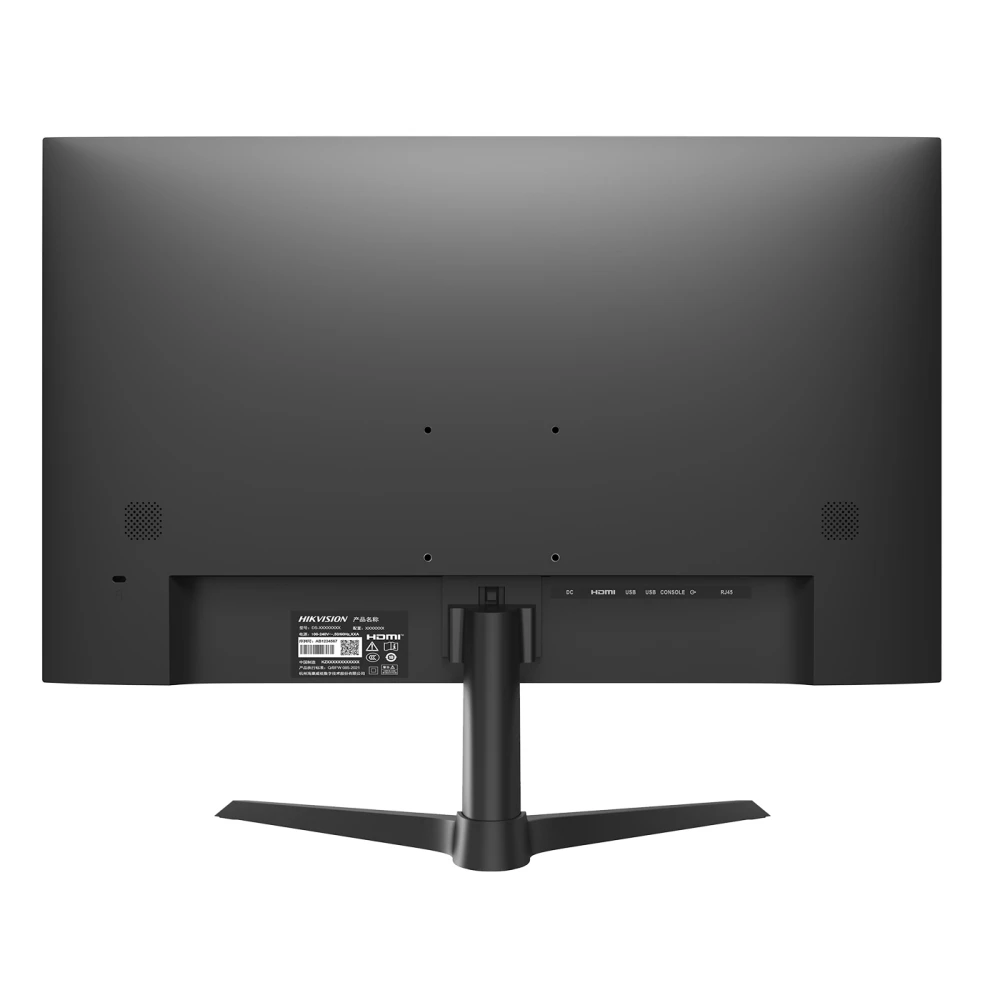

  • 1x HDMI, 1x USB 2.0, 1 x GB RJ45,
  • RJ45 Support local UI, Web UI,
  • Supports VESA wall mount.

3yr Warranty

The optional brackets:

  1. Wall mount bracket with tilt for TFT monitors
  2. Aluminium wall mount bracket suitable for TFT or LCD with VESA standard 75 x 75mm and 100 x 100mm mounting. Swivel left and right up to 180º, Up and down up to 70º

For full specs click here
