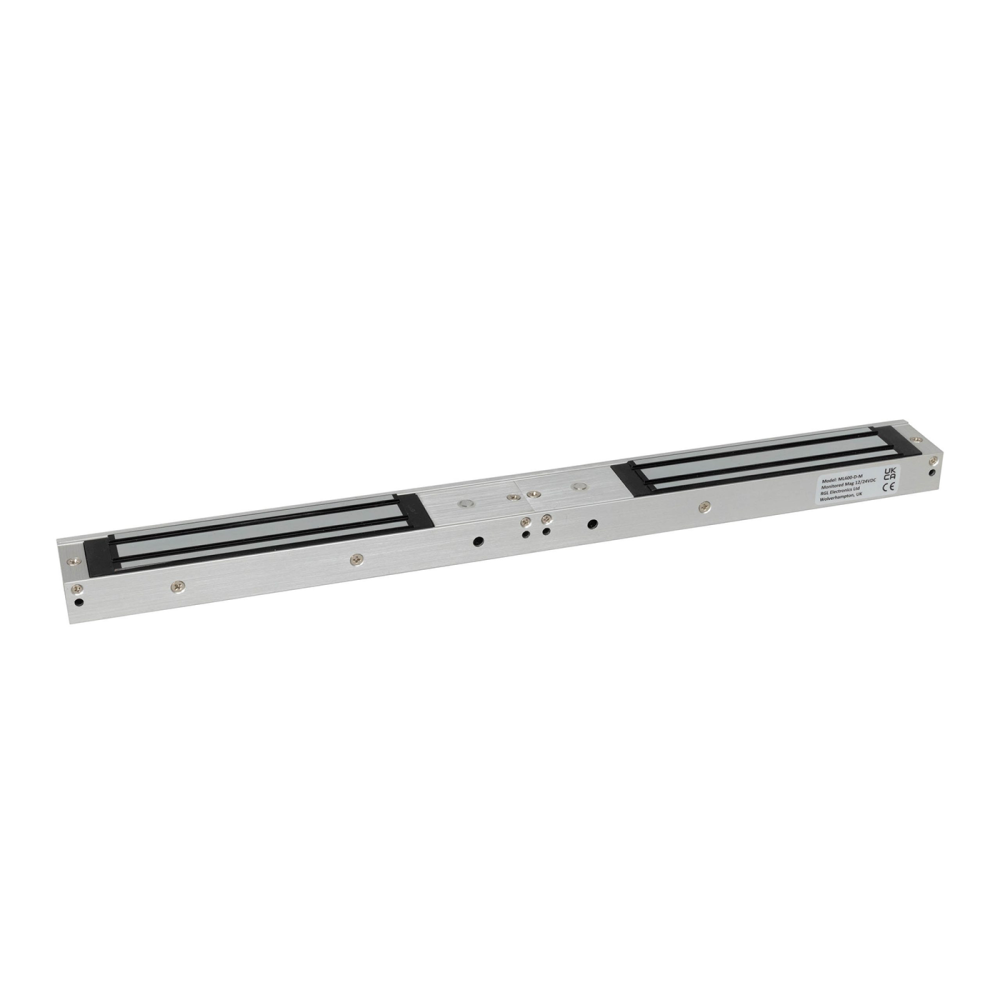

RGL ML600-D Slimline Maglock

RGL ML600-D Slimline Maglock

Brand:RGL Electronics
Product Code: ML600-D
SKU : ML600-D
Availability : In Stock

Tags: RGL, ML600-D, SLIMLINE, MAGLOCK, IP, INTERCOM, DOUBLE DOOR

The RGL ML600-D is a double door standard electro-magnetic lock ideal for use with most access control/entry systems. It is also suitable for use on all doors and has a holding force of 280kg or 600lbs.

This unit features a built-in surge protection and is suitable for use on both 12 and 24 volt systems.


Technical specifications

  • Aluminium housing.
  • 2x12/24 VDC @480/240mA.
  • 280kgs (600lb) holding force.
  • Built in surge protection.

Features:

  • Fire Tested (30 & 60 minute timber door sets)
  • Slim line mini magnet.
  • Clean and compact design in aluminium.
  • Single LED indication on ML600
  • Multi LED indication on ML600-M
  • No residual magnetism

Suitable brackets:

BK600-D-ZL (Double ZL Bracket)


For full specs click here

For installation instructions click here
