Ajax Fire EN54 Hub - Black

Ajax Fire EN54 Hub - Black

Brand:Ajax
Product Code: EN54-Hub-Black
Availability: Delivered in 2-3 Days

Tags: AJAX, FIRE, EN54, HUB,

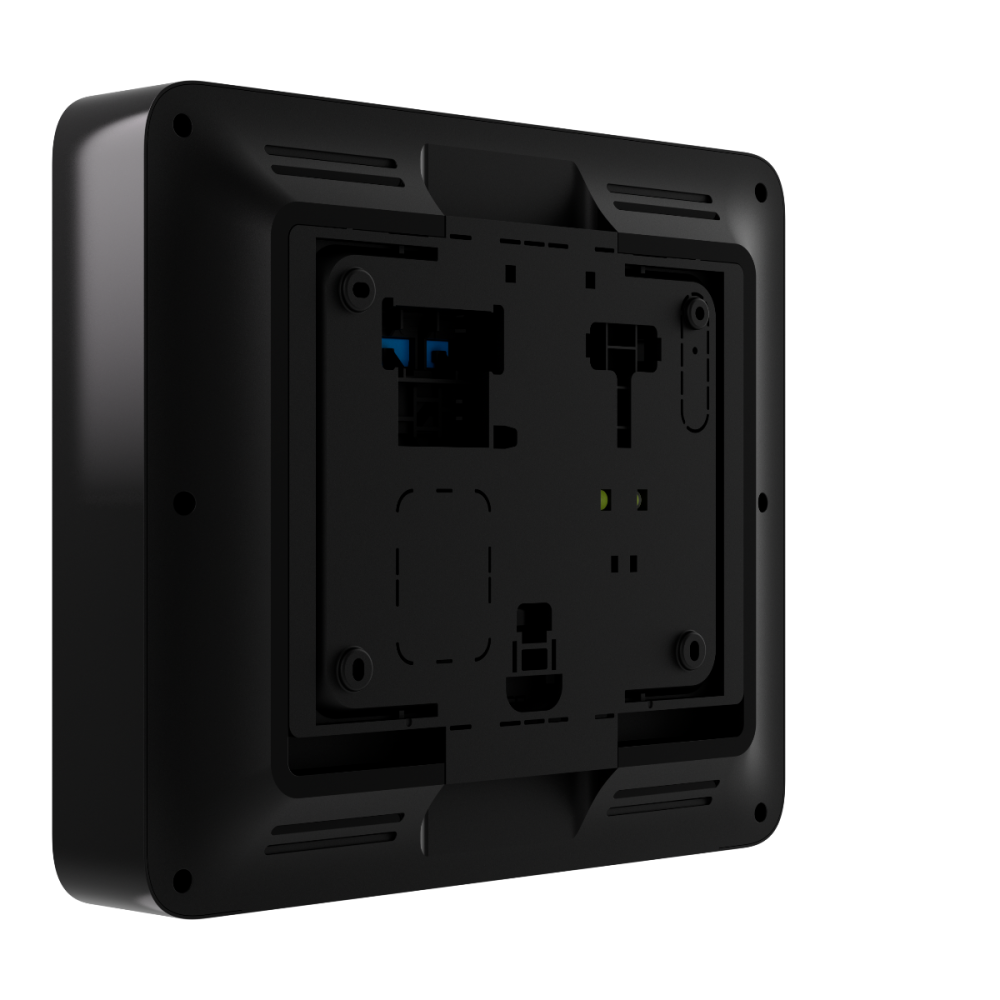

Ajax EN54 Fire Hub Jeweller – Wireless Fire Alarm Control Panel


**If cabling from surface please use Glandbox accessory here**


The Ajax EN54 Fire Hub Jeweller is a fully wireless, touchscreen control panel designed for commercial-grade fire protection. It serves as the central control and indicating equipment (CIE) for the Ajax EN54-certified fire alarm system, combining advanced communication, intuitive controls, and seamless integration with intrusion, video, and automation devices.


Key Features:

  • Certified to EN 54-2, EN 54-4, EN 54-21, EN 54-25 & EN 50131 (Grade 2)

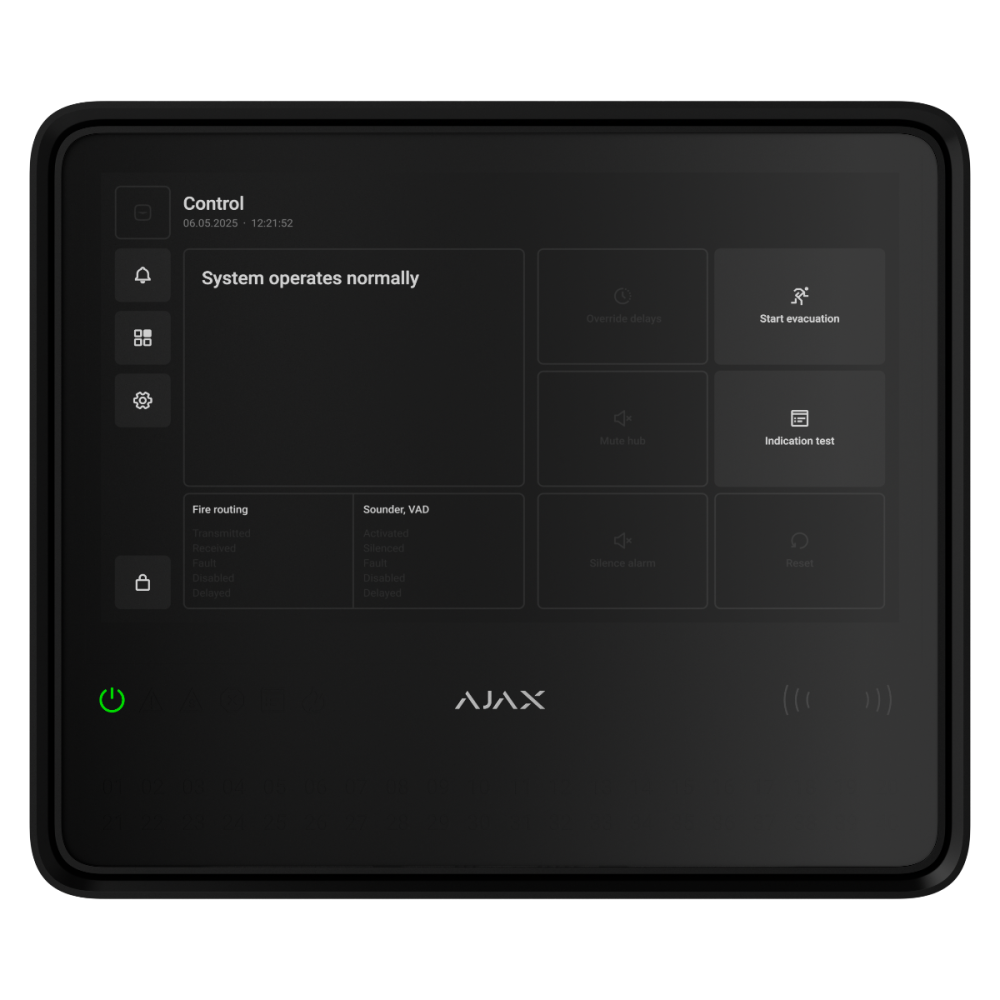

  • 10.1” IPS touchscreen with intuitive interface for fire event control
  • Connects up to 200 wireless devices across 40 fire zones
  • Multi-channel communication: Ethernet, Wi-Fi & dual SIM (2G/3G/4G)
  • Jeweller radio protocol with up to 2,000 m wireless range
  • 24h or 72h battery backup with optional EN54 Internal Battery
  • Built-in buzzer & LED indicators for alarms, faults & disablements
  • Supports remote control & configuration via Ajax apps
  • Compatible with MotionCam & photo verification for visual alerts
  • EN54 ReX support for range extension up to 35 km² with 5 extenders
  • Supports Ajax 7.4v 5ah/10ah Optional Battery* Battery backup estimate 24/72hrs

See Specs here
